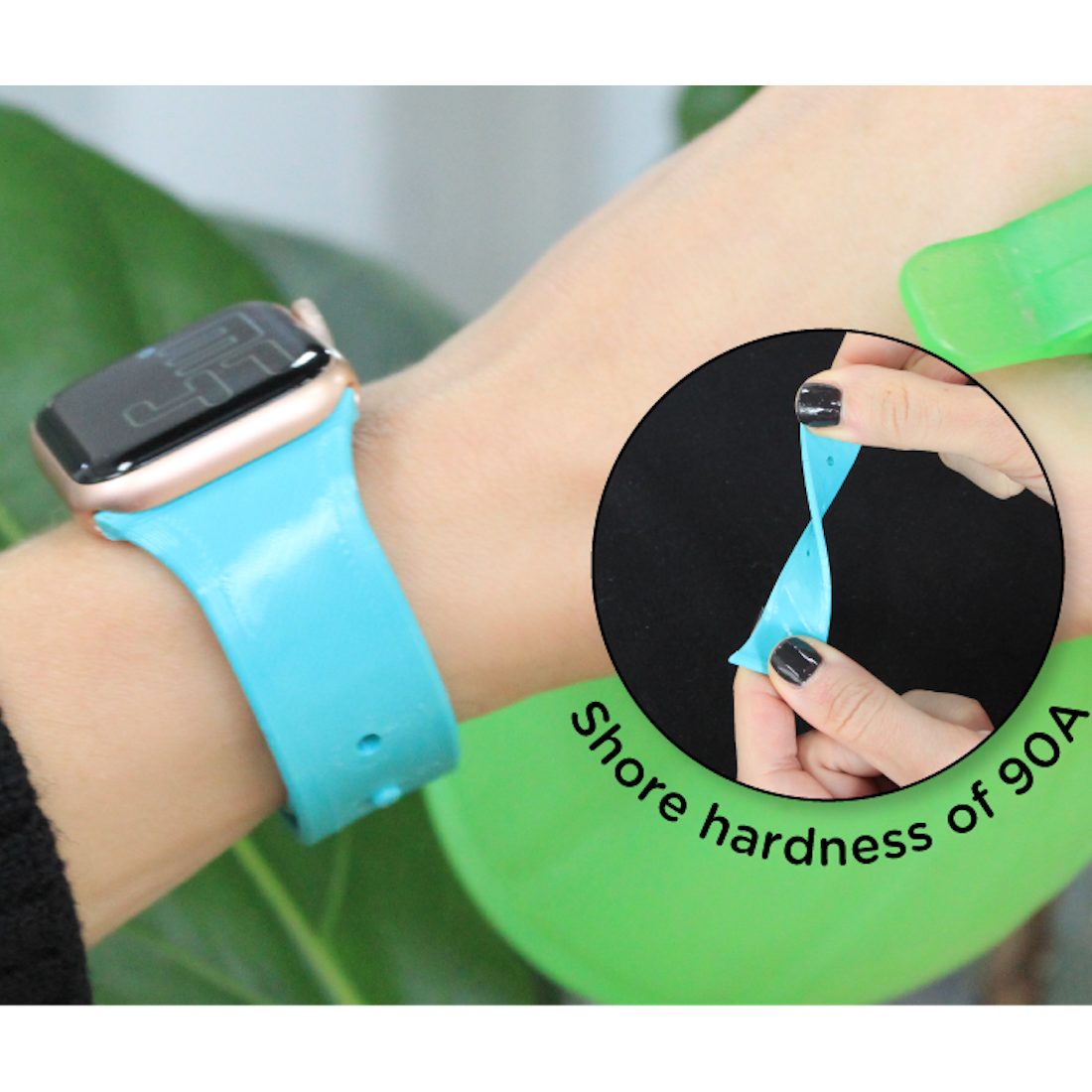

PolyFlex™ TPU90, created from Covestro’s Addigy® TPU family offers the highest degree of flexability in the PolyFlex™ family. With a shore hardness of 90A and an elongation to break of 585% this flexible filament is extremely soft while still being printable. TPU90 is certified with ISO10993 allowing it to be used for medical and skin contact devices.
Printing Temperature:
210˚C - 230˚C
Bed Temperature:
25˚C - 60˚C
Printing Speed:
30mm/s -60mm/s
Fan:
ON
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
6mm
Indirect Drive Retraction Speed:
60mm
Drying Settings:
70˚C for 8h
Dry Settings Notes:
(Only if the material has absorbed moisture)
Annealing:
70˚C for 8h
DISCLAIMER:
The created printing profiles are intended for reference only. They should not be used for design specifications or quality control purposes.
End-use performance of printed parts depends not only on materials and printing conditions but also on part design, environmental conditions, etc. Printing profiles are subject to change without notice. Each user is responsible for determining the safety, lawfulness, and technical suitability of recommended printing profiles for the intended application. Polymaker makes no warranty of any kind unless announced separately, to the fitness for any use or application. Polymaker shall not be made liable for any damage, injury or loss induced by the use of recommended printing profiles in any application.
