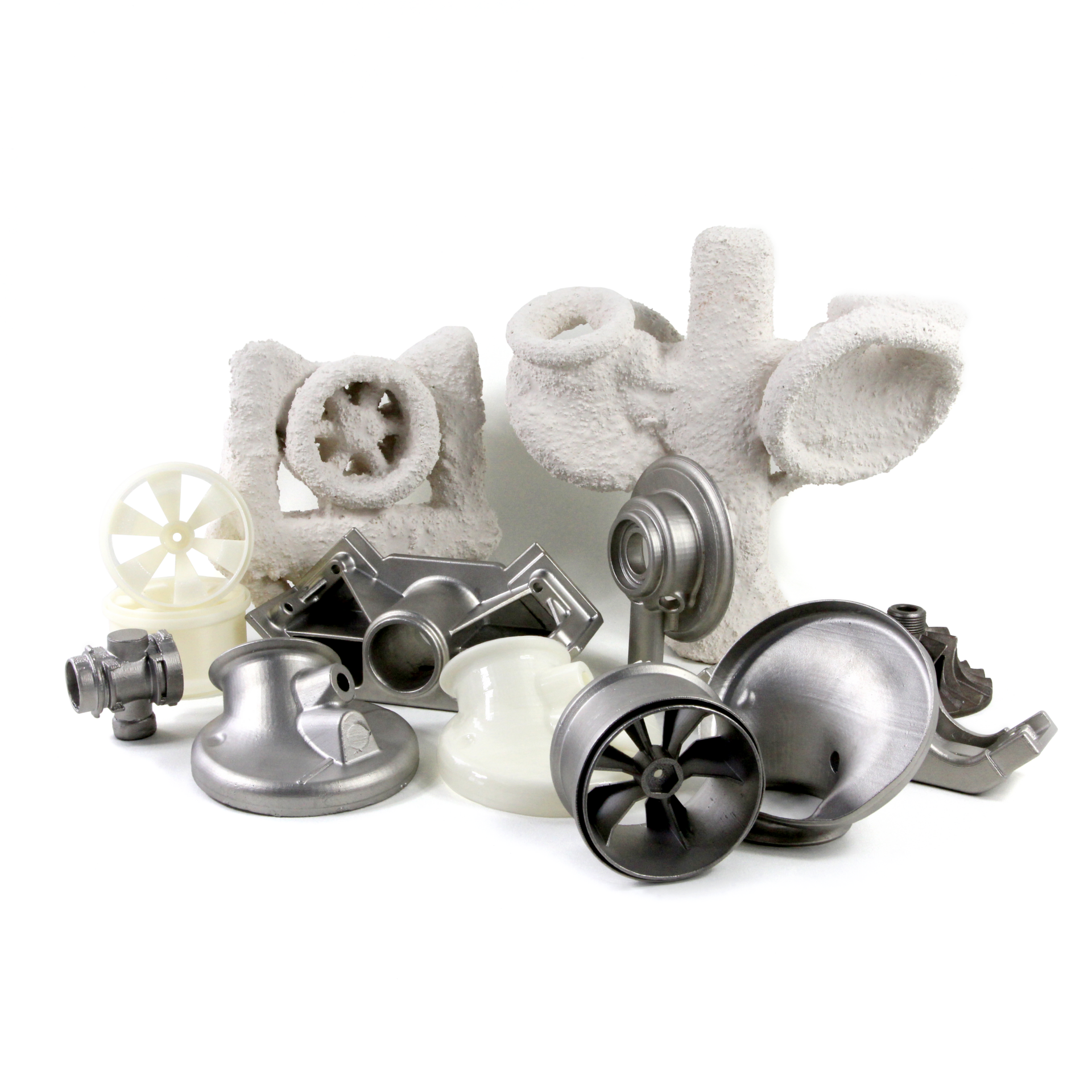

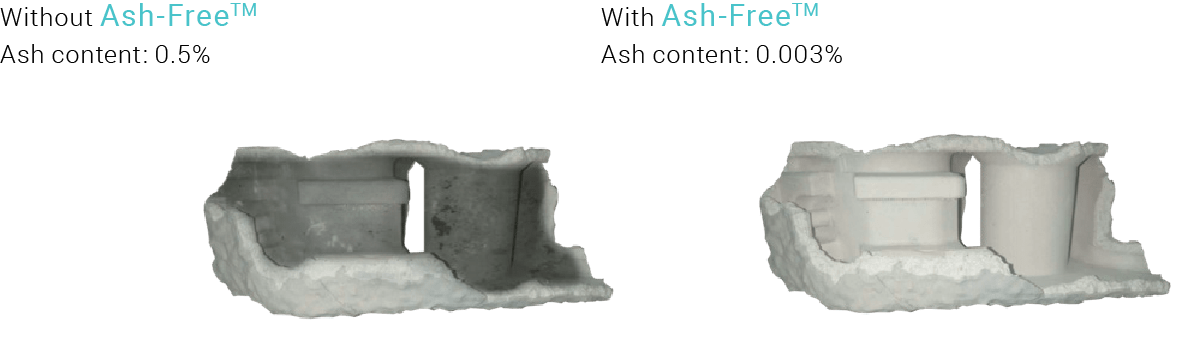

PolyCast™ is an easy to print filament designed specifically for investment casting applications. Featuring Ash Free™ Technology, 3D printed patterns in PolyCast™ can be completely vaporized when vitrifying the ceramic investment, typically leaving an ash residue of <0.003% by weight. PolyCast™ significantly cuts down both the cost and lead time by eliminating wax injection mould tooling process.
Printing Temperature:
190˚C - 220˚C
Bed Temperature:
25˚C - 70˚C
Printing Speed:
40mm/s -60mm/s
Fan:
ON
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
1mm
Indirect Drive Retraction Speed:
20mm
Drying Settings:
50˚C for 12h
Dry Settings Notes:
(Only if the material has absorbed moisture)
DISCLAIMER:
The created printing profiles are intended for reference only. They should not be used for design specifications or quality control purposes.
End-use performance of printed parts depends not only on materials and printing conditions but also on part design, environmental conditions, etc. Printing profiles are subject to change without notice. Each user is responsible for determining the safety, lawfulness, and technical suitability of recommended printing profiles for the intended application. Polymaker makes no warranty of any kind unless announced separately, to the fitness for any use or application. Polymaker shall not be made liable for any damage, injury or loss induced by the use of recommended printing profiles in any application.
